Example 4: Global Sensitivity Analysis — Sobol with MPI

(GitHub link)

This notebook runs the same Sobol sensitivity analysis as ex3 but uses MPI (Message Passing Interface) for distributed execution across multiple compute nodes or cores. The simulation script is ex4_runSA_MPI.py — a plain Python file using the same ModelAnalysisContext API with parallel_method='inter-node'. The notebook launches it via %%bash and then loads results from the shared database.

Multi-task (ex3) vs MPI (ex4):

	Multi-task (ex3)	MPI (ex4)
Launch	Python API	mpiexec -n N python script.py
Scope	Single machine	Multiple nodes
Setup	No extra config	Requires MPI installation
Best for	Laptops, workstations	HPC clusters

Model: asymmetric_division — stem cell division with reparameterized probabilities (prob. progenitor_2 = 1 − prob. progenitor_1).

Parameters explored:

• cycle_duration_stem_cell — stem cell cycle duration

• asym_div_to_prog_1_sat — saturation probability of dividing into progenitor_1

• asym_div_to_prog_2_sat — saturation probability of dividing into progenitor_2

Run simulations via MPI

Each MPI rank picks up its share of the sample list and writes results to the shared database independently.

%%bash
mpiexec -n 8 python ex4_runSA_MPI.py

Initializing MPI job with 8 processes...
PhysiCell already exists at: PhysiCell-master
Skipping download. Use force_download=True to override.
Generated 48 samples using Sobol
Inserting parameter: cycle_duration_stem_cell with properties: {'lower_bound': 1152.0, 'upper_bound': 1728.0, 'ref_value': 1440.0, 'perturbation': None}
Inserting parameter: asym_div_to_prog_1_sat with properties: {'lower_bound': 0.0, 'upper_bound': 1.0, 'ref_value': 0.0, 'perturbation': None}
Inserting {'frac_proj1_cells': None, 'frac_proj2_cells': None, 'run_time_sec': None} QoIs into the database
Simulations completed and results stored in the database: ex4_PhysiCell_SA_MPI.db.

Load results and compute summary statistics

# Load results from the database
from uq_physicell.model_analysis import calculate_qoi_statistics
import warnings

warnings.filterwarnings('ignore')  # Suppress all warnings for cleaner output
# Load the results
db_path = "ex4_PhysiCell_SA_MPI.db"
qoi_funcs = {'frac_proj1_cells':None, 'frac_proj2_cells':None, 'run_time_sec':None}
df_qois_mean, df_qois_std, df_qois_mcse = calculate_qoi_statistics(db_path, qoi_funcs)
display(df_qois_mean)

No QoI data provided, calculating QoIs from the database...
All samples in Samples table have corresponding entries in Output table.
Extracting QoIs from DataFrame...

	frac_proj1_cells_0	frac_proj2_cells_0	run_time_sec_0	time_0
SampleID
0	0.843984	0.125880	10.825394	2880.01
1	0.896023	0.073295	11.204853	2880.01
2	0.651961	0.317536	11.537088	2880.01
3	0.661141	0.309091	10.035426	2880.01
4	0.894974	0.074299	9.719086	2880.01
5	0.614583	0.354356	10.210138	2880.01
6	0.680871	0.288447	10.976077	2880.01
7	0.663192	0.306103	10.264580	2880.01
8	0.780370	0.190008	9.784336	2880.01
9	0.771402	0.197727	9.758274	2880.01
10	0.635649	0.333468	9.517483	2880.01
11	0.780147	0.189338	10.039442	2880.01
12	0.799209	0.170477	10.289918	2880.01
13	0.836292	0.134434	10.506709	2880.01
14	0.702639	0.267537	10.712825	2880.01
15	0.752590	0.217072	9.702209	2880.01
16	0.884388	0.085096	10.094876	2880.01
17	0.711582	0.258450	12.379703	2880.01
18	0.705426	0.264439	10.686780	2880.01
19	0.684894	0.285327	9.994548	2880.01
20	0.841756	0.127919	10.427948	2880.01
21	0.854501	0.115185	10.720837	2880.01
22	0.683389	0.286643	9.708683	2880.01
23	0.858560	0.110735	10.227116	2880.01
24	0.826203	0.143850	10.323526	2880.01
25	0.802217	0.168688	11.474282	2880.01
26	0.926637	0.042279	10.585155	2880.01
27	0.938957	0.030338	10.153952	2880.01
28	0.799566	0.170120	9.704243	2880.01
29	0.930822	0.037915	10.516060	2880.01
30	0.725824	0.243672	10.657874	2880.01
31	0.718596	0.250119	10.342664	2880.01
32	0.728855	0.241534	10.072137	2880.01
33	0.705235	0.264754	9.897537	2880.01
34	0.688000	0.281485	10.426809	2880.01
35	0.718530	0.250196	10.252921	2880.01
36	0.956617	0.012311	10.453640	2880.01
37	0.963972	0.006061	11.375506	2880.01
38	0.798702	0.170593	10.119175	2880.01
39	0.776225	0.193460	10.426868	2880.01
40	0.969508	0.000000	10.063891	2880.01
41	0.817536	0.151961	9.865496	2880.01
42	0.626549	0.342758	10.799564	2880.01
43	0.732264	0.237233	10.376397	2880.01
44	0.649075	0.320611	10.482474	2880.01
45	0.649115	0.320180	9.848048	2880.01
46	0.682955	0.286553	10.143365	2880.01
47	0.665809	0.303877	10.556484	2880.01

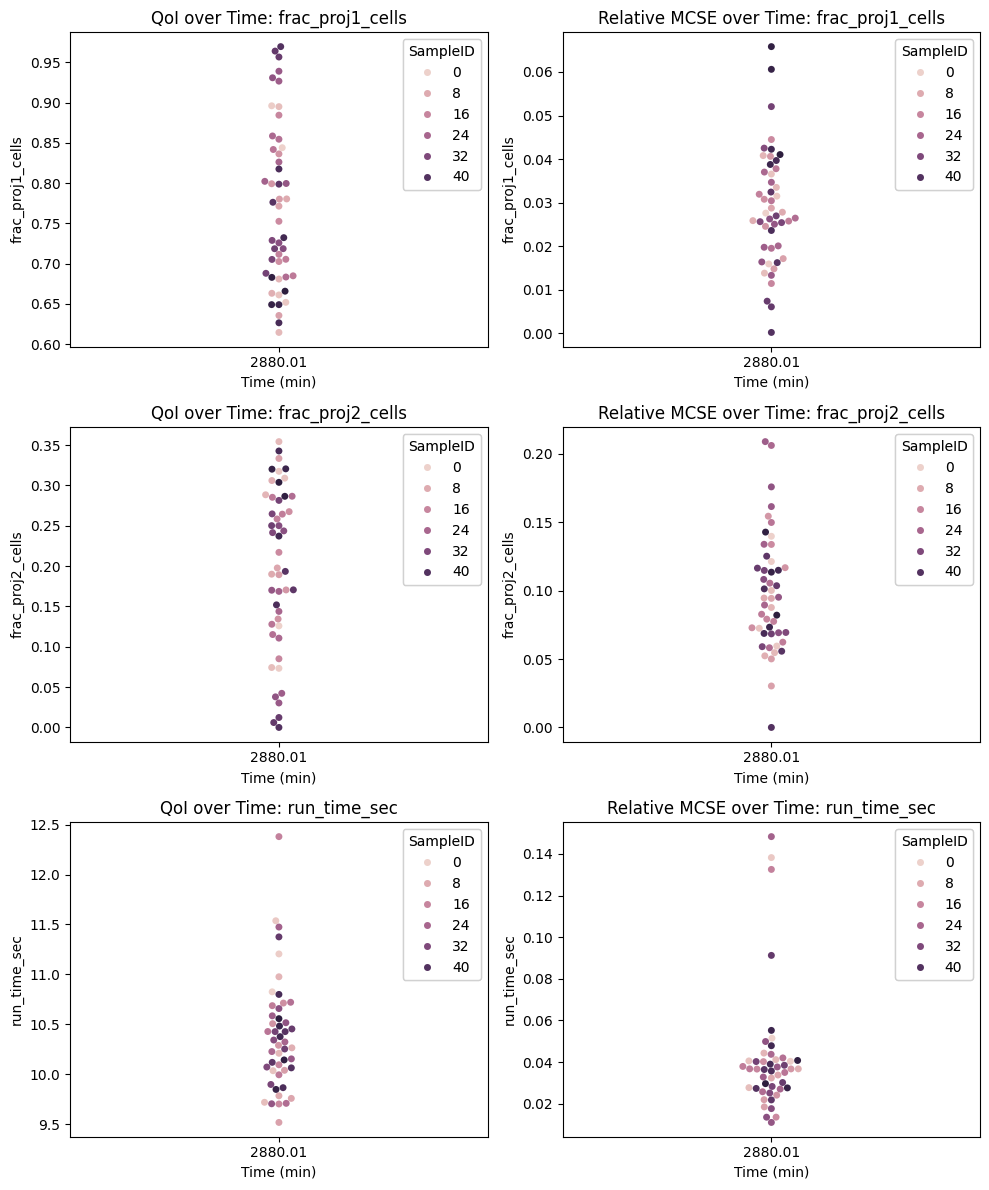

QoI over time and relative MCSE

import matplotlib.pyplot as plt
from uq_physicell.model_analysis import plot_qoi_over_time

fig, axes = plt.subplots(len(qoi_funcs.keys()), 2, figsize=(10, 4*len(qoi_funcs.keys())))
for ax_id, qoi_name in enumerate(qoi_funcs.keys()):
     # Plot QoI time series
    plot_qoi_over_time(df_qois_mean, qoi_name, axes[ax_id,0])
    axes[ax_id,0].set_title(f"QoI over Time: {qoi_name}")
    # Plot mcse
    plot_qoi_over_time(df_qois_mcse, qoi_name, axes[ax_id,1])
    axes[ax_id,1].set_title(f"Relative MCSE over Time: {qoi_name}")

# Ensure proper layout and save the figure
plt.tight_layout()  # This will automatically adjust spacing to prevent overlaps

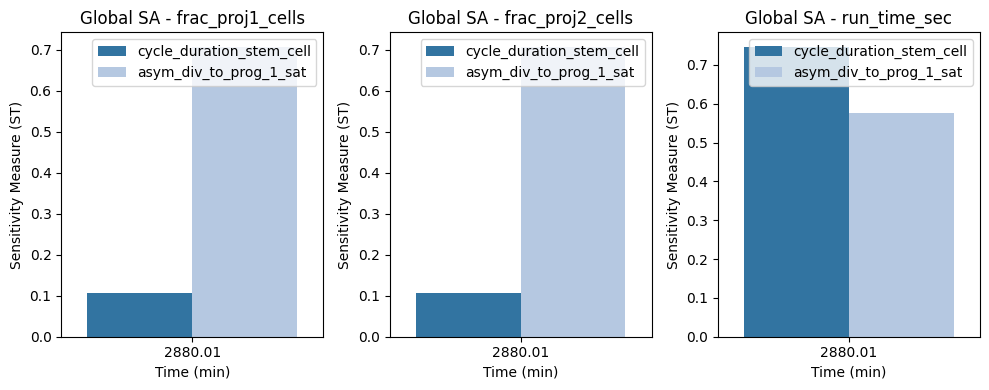

Sobol sensitivity indices (S1 and ST)

from uq_physicell.model_analysis import get_sa_results,load_parameter_space, plot_global_sa_results

sa_method = "Sobol Sensitivity Analysis"
qoi_names = list(qoi_funcs.keys())
sa_results, qoi_time_values = get_sa_results(db_path, qoi_names, df_qois_mean, sa_method)
param_names = load_parameter_space(db_path)['ParamName'].tolist()  # Load parameter names from the database

# Plot Global SA results
fig, axes = plt.subplots(1, 3, figsize=(10, 4))
for ax_id, qoi_name in enumerate(qoi_names):
    plot_global_sa_results(param_names, sa_method, qoi_time_values, sa_results, qoi_name, 'ST' , axes[ax_id])
    axes[ax_id].set_title(f'Global SA - {qoi_name}')
    axes[ax_id].legend(loc='best')

plt.tight_layout()

Warning: Could not convert perturbation (None) to float for parameter cycle_duration_stem_cell.
Warning: Could not convert perturbation (None) to float for parameter asym_div_to_prog_1_sat.
Running sensitivity analysis with method: Sobol Sensitivity Analysis
Running Sobol Sensitivity Analysis for QoI: frac_proj1_cells and time: 2880.01
Running Sobol Sensitivity Analysis for QoI: frac_proj2_cells and time: 2880.01
Running Sobol Sensitivity Analysis for QoI: run_time_sec and time: 2880.01

---

Next: ex5 demonstrates local sensitivity analysis using One-At-a-Time (OAT) sampling — a lighter approach for screening which parameters matter before running a full Sobol analysis.
